Husky 515 Air-Operated Diaphragm Pumps

 ½ inch Positive Displacement Double Diaphragm Pump

The Husky 515 has a ½ inch (12.7 mm) connection and is available in polypropylene, acetal and PVDF



The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Benefits of the Husky 515 double diaphragm pump

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing



Overview
Maximum fluid flow
15 gpm (57 l/min)
Maximum Fluid Discharge Pressure
100 psi (7 bars, 0.7 MPa)
Maximum size pumpable solids
3/32 in (2.5 mm)
Fluid displacement per cycle
0.04 g (0,15 liter)

Husky 515 Performance

Husky 515 and 716 Performance chart - Fluid Outlet Pressure

Looking for a repair kit? Use our pump configuration tools to select the repair kit for your pump:

  • Step 1 – Go to our Pump Selector Tool
  • Step 2 – Fill in your pumps part number in the right corner
  • Step 3 – Get an overview of all repair kits and accessories for your pump



Process Pump Selector
Chemical Compatibility Guide


  • Fully-groundable acetal model
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance

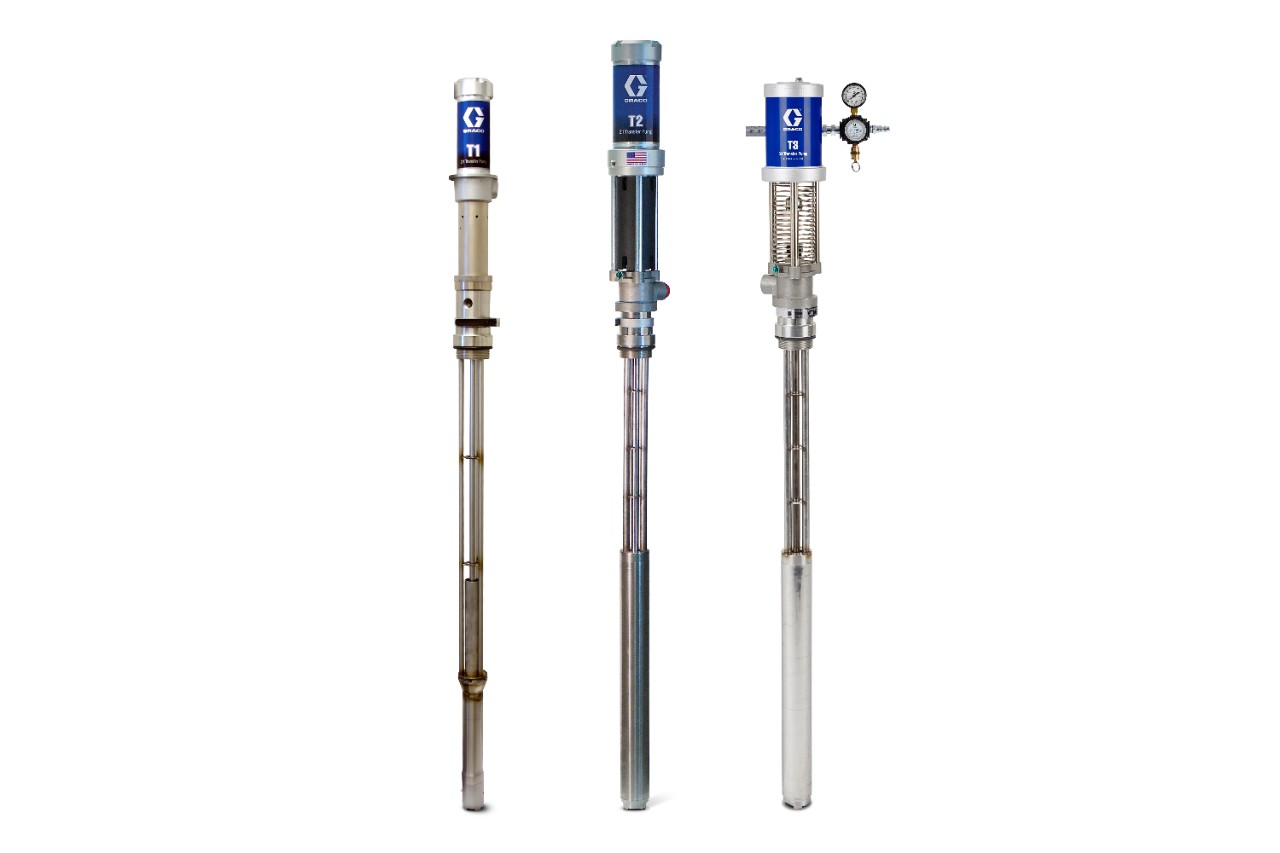

T1, T2 and T3 Transfer Pumps Transfer Pumps

Ideal for moving A and B materials to Reactor spray machines



Graco's family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.


  Part Number Ratio Maximum Output
Continuos
Maximum Input
Air Pressure
Maximum Output
Fluid Pressure
Maximum Ambient
Temperature
Maximum Fluid
Temperature
Weight Height Manual Number Wetted Materials
T1 256200 2:1 9.5 lpm (2.5 gpm) 12 bar (180 psi/1.2 MPa) 25 bar (360 psi/2.5 MPa) 49°C
(120°F)
88°C
(190°F)
8.4 kg
(18 lb)
131 cm
(51.5 in)
312766 Stainless Steel
T2 295616 2.25:1 19 lpm (5.0 gpm) 12 bar (180 psi/1.2 MPa) 28 bar (405 psi/2.8 MPa) 49°C
(120°F)
88°C
(190°F)
9.5 kg
(21 lb)
137 cm
(54 in)
311882 Stainless Steel
T3 SST 26A304 3:1 17 lpm (4.5 gpm) 6.8 bar (100 psi/0.68 MPa) 21.7 bar (315 psi/2.17 MPa) 49°C
(120°F)
88°C
(190°F)
10 kg
(22 lb)
128 cm
(50.3 in)
3A5180 Stainless Steel
T3 CS 24Z834 3:1 17 lpm (4.5 gpm) 6.8 bar (100 psi/0.68 MPa) 21.7 bar (315 psi/2.17 MPa) 49°C
(120°F)
88°C
(190°F)
10 kg
(22 lb)
128 cm
(50.3 in)
3A5180 Carbon Steel


T2 pump in barrel



  • Provide consistent feed pressures and flow rates for dependable results
  • Lower pressure drops with higher viscosity materials at any ambient temperature
  • Designed and manufactured by the worldwide leader in pump technology
  • Longer lasting pump - designed for durability with less maintenance
  • Quick-release bung adapter for easy drum removal without interference from hose connections
  • Stainless steel wetted parts for corrosion-resistance
  • PTFE seals for improved performance and less maintenance

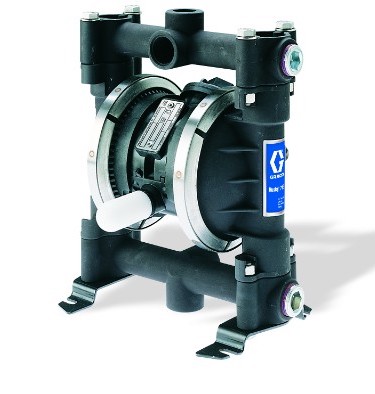

Husky 716 Air-Operated Diaphragm Pumps

 ¾ inch Positive Displacement Double Diaphragm Pump
The Husky 716 has a ¾ inch (19.05 mm) connection and is available in aluminum and stainless steel

The Husky 716 air-operated diaphragm pump features an external controller for remote control capabilities.

Benefits of the Husky 716 double diaphragm pumps

  • Center and end porting options
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks



Overview
Maximum fluid flow
16 gpm (61 l/min)
Maximum Fluid Discharge Pressure
100 psi (7 bars, 0.7 MPa)
Maximum size pumpable solids
3/32 in (2.5 mm)
Fluid displacement per cycle
0.04 in (0,64 liter)

Husky 716 Performance

Husky 716 Fluid Outlet Pressure

Looking for a repair kit? Use our pump configuration tools to select the repair kit for your pump:

  • Step 1 – Go to our Pump Selector Tool
  • Step 2 – Fill in your pumps part number in the right corner
  • Step 3 – Get an overview of all repair kits and accessories for your pump.



Process Pump Selector
Chemical Compatibility Guide




  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
