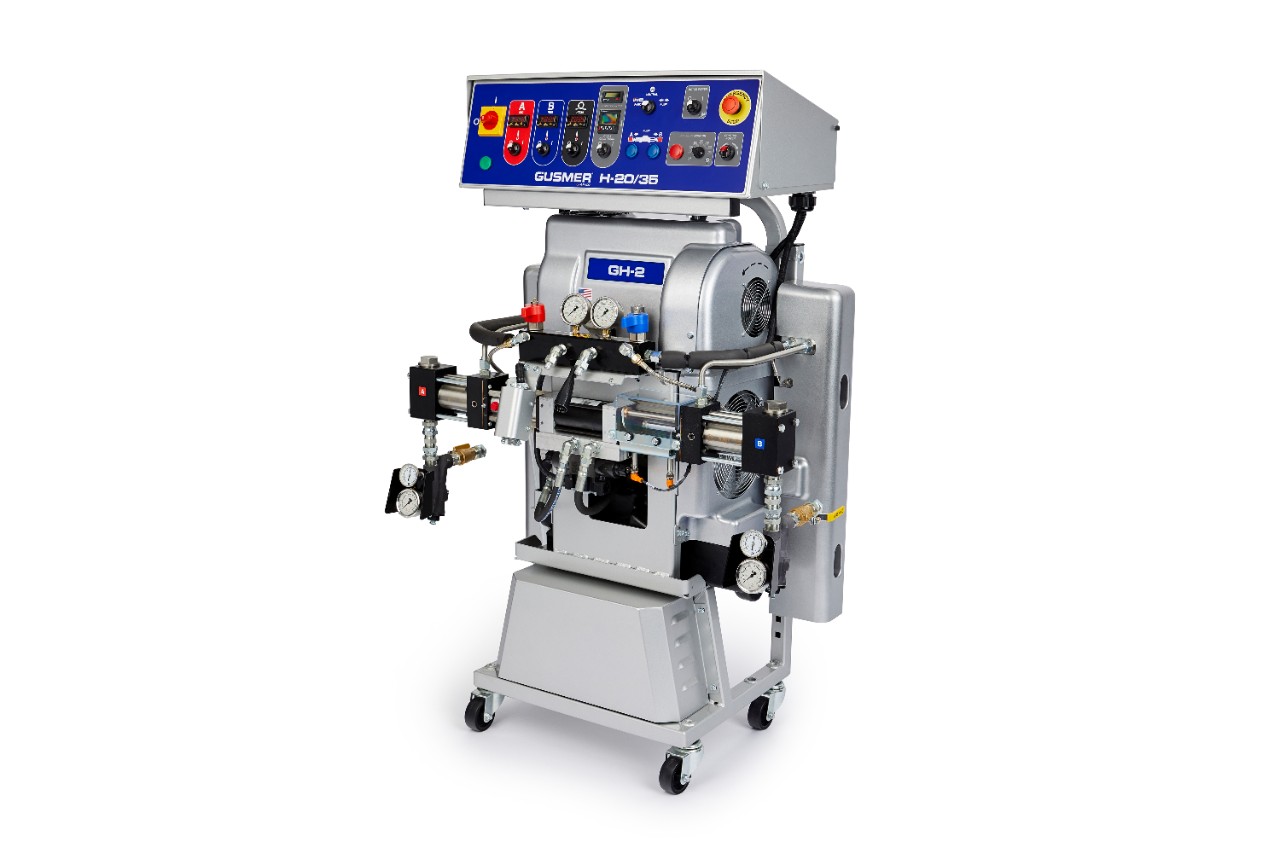

Gusmer H-20/35 GH-2
Gusmer H-20/35 GH-2
Spray Foam Machine
Simple, durable and reliable hydraulic spray foam machine
Designed With Reliability and Ease of Service in Mind
Guided by both simplicity and reliability, Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer H-20/35 GH-2 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price.
Ideal for a wide range of spray foam applications:
- Residential insulation
- Commercial wall insulation
- Roof insulation
- Rim and band joist
- Concrete lifting
| Gusmer GH-2 | |
| Maximum Working Pressure | 2000 psi (183 bar, 13.8 MPa) |
|---|---|
| Maximum Hose Length | 320 ft (97.5 m) |
| Maximum Fluid Temperature | 190˚F (88˚C) |
| Output | 28 lbs/min (12.3 kg/min) |
| Weight | 585 lbs (265 kg) |
| Dimensions (W x D x H) | 32 in x 21 in x 54 in (81 cm x 53 cm x 137 cm) |
| Operation and Repair Manual | 3A5376 |
- Main Power
- Temperature Controllers
- Cycle Counter
- Pump Control Switch
- Motor Power Switch
- Control Power Switch
- Pressure Monitor
- Pump Direction Indicator
- Count Down
- Heat Zone Switches
- Main Power Indicator Light
